 Prices include shipping



Brass Stacker™ Model BH-S-BO Bayonet Handle w/Pommel

Do something with your Mosin Nagant 91/30 bayonet!

Great for Hog Hunting. Bayonet NOT included. Features: CNC machined Solid Steel; Black Oxide Finish; Hardened Alloy Steel Black Button Head Cap Screw; WEIGHS APPROX. 1.20 LBS; Supplied Hex Wrench; 100% Lifetime Warranty; Made in USA!

Easy Installation

NO Permanent Modification


Click here for more information and to order

Brass Stacker™ Model FSAR-E (.6719″ ID) for 19.50″ to 17.50″ Barrels

Features: CNC Machined from Solid Steel with Black Oxide finish. Made in USA! 100% Lifetime Warranty. Front Sight Adapter Ring allows for the use Original Post & Globe front sight (that has been removed during barrel shortening) of a Mosin Nagant 91/30 without permanent modification to firearm. It is designed to fit over tapered barrel of the Model 91/30 and be locked in place with two opposing set screws. The Original dovetailed Post & Globe front sight can then be pressed in to adapter. The adapter has been design to maintain the original sight line.


Click here for more information and to order

Brass Stacker™ Model FSAR-D (.6563″ ID) for 21.50″ to 19.50″ Barrels

Features: CNC Machined from Solid Steel with Black Oxide finish. Made in USA! 100% Lifetime Warranty. Front Sight Adapter Ring allows for the use Original Post & Globe front sight (that has been removed during barrel shortening) of a Mosin Nagant 91/30 without permanent modification to firearm. It is designed to fit over tapered barrel of the Model 91/30 and be locked in place with two opposing set screws. The Original dovetailed Post & Globe front sight can then be pressed in to adapter. The adapter has been design to maintain the original sight line.


Click here for more information and to order



Brass Stacker™ Model FSAR-C (.6406″ ID) for 23.50″ to 21.50″ Barrels

Features: CNC Machined from Solid Steel with Black Oxide finish. Made in USA! 100% Lifetime Warranty. Front Sight Adapter Ring allows for the use Original Post & Globe front sight (that has been removed during barrel shortening) of a Mosin Nagant 91/30 without permanent modification to firearm. It is designed to fit over tapered barrel of the Model 91/30 and be locked in place with two opposing set screws. The Original dovetailed Post & Globe front sight can then be pressed in to adapter. The adapter has been design to maintain the original sight line.

Click here for more information and to order

Brass Stacker™ Model FSAR-B (.6250″ ID) for 25.50″ to 23.50″ Barrels

Features: CNC Machined from Solid Steel with Black Oxide finish. Made in USA! 100% Lifetime Warranty. Front Sight Adapter Ring allows for the use Original Post & Globe front sight (that has been removed during barrel shortening) of a Mosin Nagant 91/30 without permanent modification to firearm. It is designed to fit over tapered barrel of the Model 91/30 and be locked in place with two opposing set screws. The Original dovetailed Post & Globe front sight can then be pressed in to adapter. The adapter has been design to maintain the original sight line.

Click here for more information and to order

Brass Stacker™ Model FSAR-A (.6094″ ID) for 27.25″ to 25.50″ Barrels

Features: CNC Machined from Solid Steel with Black Oxide finish. Made in USA! 100% Lifetime Warranty. Front Sight Adapter Ring allows for the use Original Post & Globe front sight (that has been removed during barrel shortening) of a Mosin Nagant 91/30 without permanent modification to firearm. It is designed to fit over tapered barrel of the Model 91/30 and be locked in place with two opposing set screws. The Original dovetailed Post & Globe front sight can then be pressed in to adapter. The adapter has been design to maintain the original sight line.

Click here for more information and to order



Mosin Nagant M9130 See Thru Scout Scope Mount

Scope your Mosin while preserving its historic integrity.

Steel Picatinny Rail, Mounts Over Rear Sight Block

***PLEASE READ SPECIFICATIONS & FITMENT NOTES BEFORE PURCHASING***

There is no need for bent bolt handle with this Mount.

FEATURES: Allows for mounting of Scout Scope or other long eye relief optics on your military surplus Mosin Nagant model 91/30 without the need to drill & tap receiver or make any permanent modifications to the firearm. It is designed to fit over rear sight block in order to allow for continued use of the original fixed/iron sights up to 100 meters. The Mount is rigid steel construction with Black Oxide finish. 100% Lifetime Warranty!

Click here for more information and to order


Mosin Nagant M38 M44 T53 See Thru Scout Scope Mount

Scope your Mosin while preserving its historic integrity.

Steel Picatinny Rail, Mounts Over Rear Sight Block

***PLEASE READ SPECIFICATIONS & FITMENT NOTES BEFORE PURCHASING***

There is no need for bent bolt handle with this Mount.

FEATURES: Allows for mounting of Scout Scope or other long eye relief optics on your milsurp Mosin Nagant model M38, M44 or T53 without the need to drill & tap receiver or make any permanent modifications to the firearm. It is designed to fit over rear sight block in order to allow for continued use of the original fixed/iron sights up to 100 meters. The Mount is rigid steel construction with Black Oxide finish. 100% Lifetime Warranty!

Click here for more information and to order

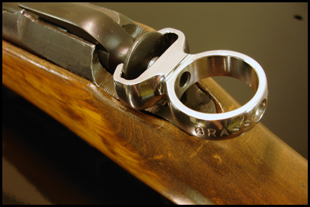

Mosin Nagant Cocking Knob Safety Pull Ring

Inconvenient at best, the cocking knob safety of the Mosin Nagant can be difficult to engage and is therefore often not used. In an effort to promote firearm safety by preventing accidental discharge, we have developed our Cocking Knob Safety Pull Ring (Patent Pending) which allows for more convenient manipulation of the Mosin Nagant safety.  Available in stainless or black.

The Safety Pull Ring features:

∙ A large diameter finger hole that will accommodate even gloved hands and does not interfere with bolt function.

∙ Easy installation utilizing a simple, non-marring, soft brass set screw with no permanent modification to the firearm required.

∙ Access to the slotted end of the firing pin via clearance hole through set screw.

∙ Sleek, stylish look and superior American craftsmanship available in both black oxide finished steel and polished stainless steel.


Click here for more information and to order

Cocking Knob Safety Pull Ring Installation Instructions:

CAUTION! Improper installation or use may result in damage to property, severe injury, or loss of life. If for any reason this product does not function properly with your firearm, discontinue use immediately. Always practice proper FIREARM SAFETY and ensure firearm is UNLOADED prior to installation. (Although not required, the consumer may choose to use an appropriate liquid thread locker for the brass jacking set screw.) Keep firearm pointed in a safe direction and cock by closing bolt on an EMPTY chamber. Insert supplied 3/16” hex wrench through large hole in rear of Safety Pull Ring and advance forward through smaller hole in opposite side of ring. Gently rotate wrench until alignment allows for engagement in the brass jacking set screw. Retract fully the brass jacking set screw by rotating counterclockwise. (When installed correctly, the jacking screw must be centered over the exposed slotted screw in the crown of the bolt cocking knob. Take note of the fact that the center of the brass jacking set screw is relieved. This relief hole has been machined in the jacking screw to accommodate the free rotational movement of the slotted screw end of the firing pin in the crown of the cocking knob. When tightened, if the jacking screw is not centered it can interfere with the rotation of the slotted end of the firing pin which is keyed within the bolt.) Place the Safety Pull Ring arms over the bolt cocking knob until roughly centered and gently snug brass jacking set screw against back of knob by rotating clockwise, DO NOT TIGHTEN. The pull ring is designed to engage the knurled outside diameter of the cocking knob with four points of contact. While performing the following, exercise patience and make small adjustments to gradually tighten in the desired position: Rotate the Safety Pull Ring to the desired alignment and manipulate to the center of the cocking knob crown while simultaneously adjusting the position of the clamping arms to provide even contact against the knurled outer diameter of the knob. In its proper position, the Safety Pull Ring should be perfectly horizontal when viewed from the rear. This horizontal orientation will minimize the chance of the Safety Pull Ring coming in contact with the wooden stock upon firing. Once final positioning is achieved, tighten to a maximum torque of 7 ft lbs. Do not over tighten as that will “spring” the arms beyond there allowable limit. When tightened properly, the four points of contact should deform slightly providing an adequate degree of “bite” on the cocking knob. Check for proper fit and function before firing.

Operating Instructions: CAUTION! Engage / disengage safety ONLY with rifle pointed in a SAFE direction! With the Safety Pull Ring properly installed and fingers AWAY from trigger, engage the safety from a cocked condition by inserting finger securely in ring, gently pull cocking knob rearward and rotate counterclockwise approximately 45°. To disengage the safety, insert finger securely in ring, gently pull cocking knob rearward and rotate clockwise back to a vertical position.



Brass Stacker™ Model MN9130-SSM for Mosin Nagant 91/30′s

Steel Picatinny Rail, Mounts Over Rear Sight Block

***PLEASE READ SPECIFICATIONS & FITMENT NOTES BEFORE PURCHASING***

There is no need for bent bolt handle with this Mount.

FEATURES: Allows for mounting of Scout Scope or other long eye relief optics to Mosin Nagant model 91/30′s without the need to drill & tap receiver or make any permanent modifications to firearm. It is designed to fit over rear sight block in order to allow for continued use of the original fixed/iron sights up to 100 meters. The Mount is rigid steel construction with Black Oxide finish. 100% Lifetime Warranty!

SPECIFICATIONS: The Mount will accommodate a front to back (horizontal) pin center distance of 1.39” (35.3mm) to 1.82” (46.7mm) and allows for .039” (1mm) of up and down (vertical) movement. The Mount is designed to fit over rear sight blocks that measure between .750″(19.05mm) and .787″(20.00mm) wide. The total weight including hardware is 5.5 oz. Please note that we have made every reasonable effort to ensure that our Mount will work with the vast majority of 9130’s. If for any reason our Mount does not work with your specific 9130 it can be returned (undamaged) for a full refund.

UNIT:

Mount: CNC laser cut perimeter, die punched holes and mounting slots, form tapped threads and die press formed. 3/32” (13 ga.) thick HR, P&O type CS-B A569 carbon steel; 40000 psi yield strength. Black Oxide plated.

Picatinny Rail: CNC machined to MIL-STD-1913. 8″ long. HR ATSM A36 low carbon steel; 36000 psi yield strength. Black Oxide plated.

Screws: #10-32 x ¼” flat head socket cap screws. Alloy steel; Rc 38-45 hardness.

HARDWARE:

Bolts: M3x.5 X 30mm socket head cap screw. Grade 12.9 medium carbon Q&T alloy steel; Rc 38-44 hardness; 160000 psi yield strength, 177000 psi tensile strength; 1.67 ft lbs tightening torque.

Nuts: M3x.5 Hex Nut. Grade 2 low carbon steel; Rc 32 hardness; 60000 psi tensile strength. Black Oxide plated.

Lock Washers: 3mm cut spring lock washer. Steel. Black Oxide plated.

Flat Washers: 3mm plain flat washer. Steel. Black Oxide plated

TOOLS PROVIDED:

Wrench: 2.5mm short arm hex key. Steel.

Drill: 3.00x41x70mm HSS Jobber. *Note: Drill is provided as a means to clean out or straighten existing pin holes.*

Punch: 3/32” x 7/8” dowel pin. Hardened 4140 alloy steel; Rc 47. ¼” x 2” Aluminum handle. *Note: This punch is not designed to be used on difficult to remove pins such as those soldered in place.*

Complete installation instructions are supplied.

SCOPE & RINGS ARE NOT PROVIDED!

Brass Stacker™ Model MN3844-SSM for Mosin Nagant M38 & M44’s

Steel Picatinny Rail, Mounts Over Rear Sight Block

***PLEASE READ SPECIFICATIONS & FITMENT NOTES BEFORE PURCHASING***

There is no need for bent bolt handle with this Mount.

FEATURES: Allows for mounting of Scout Scope or other long eye relief optics to Mosin Nagant models M38 & M44′s without the need to drill & tap receiver or make any permanent modifications to firearm. It is designed to fit over rear sight block in order to allow for continued use of the original fixed/iron sights up to 100 meters. The Mount is rigid steel construction with Black Oxide finish. 100% Lifetime Warranty!

SPECIFICATIONS: This Mount utilizes the barrel pin hole and the pivot pin hole in the rear sight block. The Mount will accommodate a front to back (horizontal, parallel to bore axis) pin center distance of 1.56” (39.6mm) to 1.79” (45.4mm) and allows for an up and down (vertical, perpendicular to bore axis) pin center distance of .18” (4.6mm) to .41” (10.3mm). The Mount is designed to fit over rear sight blocks that measure between .750? (19.05mm) and .787? (20.00mm) wide. The total weight including hardware is 5.4 oz. Please note that we have made every reasonable effort to ensure that our Mount will work with the vast majority of M38 & M44’s. If for any reason our Mount does not work with your specific M38 or M44 it can be returned (undamaged) for a full refund.

UNIT:

Mount: CNC laser cut perimeter, die punched holes and mounting slots, form tapped threads and die press formed. 3/32” (13 ga.) thick HR, P&O type CS-B A569 carbon steel; 40000 psi yield strength. Black Oxide plated.

Picatinny Rail: CNC machined to MIL-STD-1913. 8? long. HR ATSM A36 low carbon steel; 36000 psi yield strength. Black Oxide plated.

Screws: #10-32 x ¼” flat head socket cap screws. Alloy steel; Rc 38-45 hardness.

HARDWARE:

Bolts: M3x.5 X 30mm socket head cap screw. Grade 12.9 medium carbon Q&T alloy steel; Rc 38-44 hardness; 160000 psi yield strength, 177000 psi tensile strength; 1.67 ft lbs tightening torque.

Nuts: M3x.5 Hex Nut. Grade 2 low carbon steel; Rc 32 hardness; 60000 psi tensile strength. Black Oxide plated.

Lock Washers: 3mm cut spring lock washer. Steel. Black Oxide plated.

Flat Washers: 3mm plain flat washer. Steel. Black Oxide plated

TOOLS PROVIDED:

Wrench: 2.5mm short arm hex key. Steel.

Drill: 3.00x41x70mm HSS Jobber. *Note: Drill is provided as a means to clean out or straighten existing pin holes.*

Punch: 3/32” x 7/8” dowel pin. Hardened 4140 alloy steel; Rc 47. ¼” x 2” Aluminum handle. *Note: This punch is not designed to be used on difficult to remove pins such as those soldered in place.*
Complete installation instructions are supplied.

SCOPE & RINGS ARE NOT PROVIDED!

The Safety Pull Ring features:

∙ A large diameter finger hole that will accommodate even gloved hands and does not interfere with bolt function.

∙ Easy installation utilizing a simple, non-marring, soft brass set screw with no permanent modification to the firearm required.

∙ Sleek, stylish look and superior American craftsmanship available in both black oxide finished steel and polished stainless steel.

Made in America with a 100% Lifetime Warranty.

Free domestic shipping.

PLEASE READ THE FOLLOWING BEFORE PURCHASING.

***There is wide variation in cocking knob diameter, thickness and crown radius in the Mosin Nagant population. In addition, there are many cases where the cocking knob neck is bent. We have made every reasonable effort to ensure that this product will fit the majority of Mosin Nagant cocking knobs. However, due to the large number of these firearms produced over many years around the world, it is impossible for us to allow for all manufacturing variation. As with all of our products, it may be returned undamaged for a full refund.

This product does not fix, repair, replace, improve or in any way change the condition or function of your firearms’ existing safety. It is designed to simply allow for easier manipulation the existing safety. NEVER depend solely on your firearms’ safety, ALWAYS keep your firearm pointed in a safe direction.
